Golfzon WAVE is
The Perfect Practice Tool
For Golfers
Who Are
Serious About Improving
Their Game.

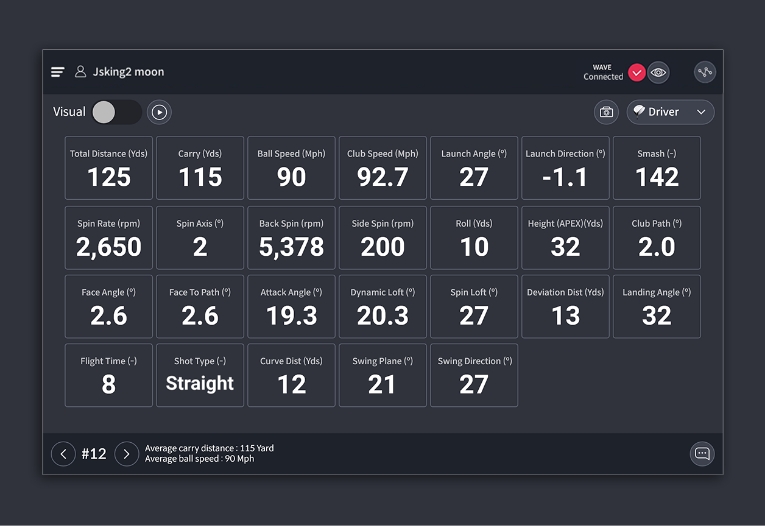

WAVE Skills Data

Parameter name Parameter definition How to derive parameters WAVE Radar Parameters WAVE Putt Parameters
the number of parameters 26 8
Club Speed The speed of the club immediately after impact measurement O O
Attack Angle
(Angle of Attack)
The direction the club head moves at impact (up or down) measurement O
Club Path The direction the club face moves at impact measurement O
Dynamic Loft The amount of loft that appears on the club face at impact calculation O
Face Angle
(Face to Target)
The direction the clubface is pointing at the moment of impact calculation O
Spin Loft Dynamic Loft - Attack Angle calculation O
Face To Path Difference between face angle and club pass (based on whether a closed or open hit) calculation O
Ball Speed The speed of the ball immediately after impact measurement O O
Smash Factor
( Impact Ratio )
Ball speed / Swing Speed calculation O O
Launch Angle
(Vertical Launch Angle)
The angle at which the ball flies off the ground after impact measurement O
Launch Direction
(Horizontal Launch Angle)
direction of the ball measurement O O
Spin Rate
(Total Spin)
The amount of rotation of the ball after impact (RPM) calculation O
Spin Axis the angle of the axis of rotation of the ball calculation O
Back Spin Calculation of vertical rotation by analyzing Spin Rate and Spin Axis calculation O
Side Spin Calculation of horizontal rotation by analyzing Spin Rate and Spin Axis calculation O
Height
(Apex)
Maximum height from the ground when flying the ball calculation O
Carry
( carry distance )
Distance from the ball flying in the air to landing calculation O
Total
(total Distance)
The combined distance of carry and run calculation O O
Roll (Run) Rolled distance (Run) calculation O
Lateral Landing
(DeviationDist)
The distance the ball lands on the side of the target line. calculation O
Land Angle
( Vertical Descent Angle )
The angle at which the ball approaches the landing area calculation O
Hang Time
(Flight Time)
Flight time from ball departure to fall calculation O
Backward Swing Speed Backward Swing Speed measurement O
Putting Total Time Measurement of the time from the point of the backswing to the point of impact measurement O
Tempo Club speed / Backward Swing Speed calculation O
Swing Plane
(Vertical Swing Plane)
Club head movement trajectory angle
(rear measurement)
measurement O
Swing Direction (Horizontal Swing Plane) Club head movement trajectory angle
(side measurement)
measurement O
Curve
(CurveDist)
Lower the vertical line from the place
where you landed in the firing direction and measure the vertical line.
calculation O
Shot Type (Straight 1 Fade 2 Draw 3 Push 4 Pull 5 Slice 6 Hook ) calculation O
